CA-A Normal double twisted barbed wire machine It is suitable for low carbon wire,galvanized wire,pvc coated wire.
technique parameter:
| item | CS-A |
| motor | 3KW |
| rated output | 80kg-120kg/h |
| weight | 1100kg |
| overall dimension | 1900*1300*980mm |
| wire collection part size | 1800*750*750mm |
| barb pitch spacing | 3'' ,4'' ,5'' 6'' |
| strand diameter | 1.8-3.0mm |
| wire diameter | 1.7-2.8mm |
| rotating speed of drive shaft | 432r/min |

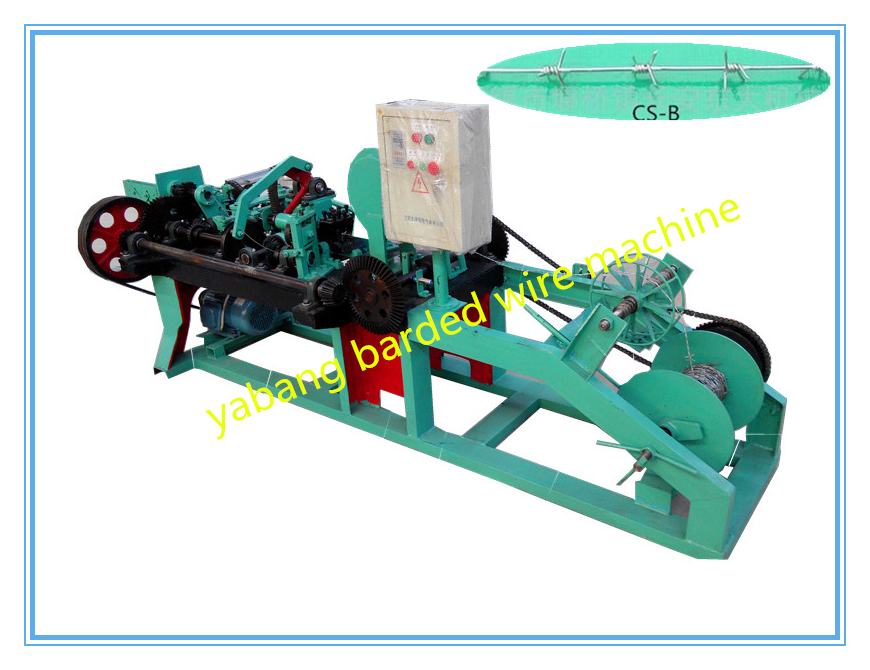

CA-B Single twisted barbed wire machine
It is suitable for low carbon wire,galvanized wire,pvc coated wire.
technique parameter:
| item | CS-B |
| motor | 2.2KW |
| rated output | 50kg-60kg/h |
| weight | 1000kg |
| overall dimension | 1900*1300*980mm |
| wire collection part size | 1300*800*700mm |
| barb pitch spacing | As required |
| strand diameter | 1.8-3.2mm |
| wire diameter | 1.6-2.2mm |
| rotating speed of drive shaft | 357r/min |

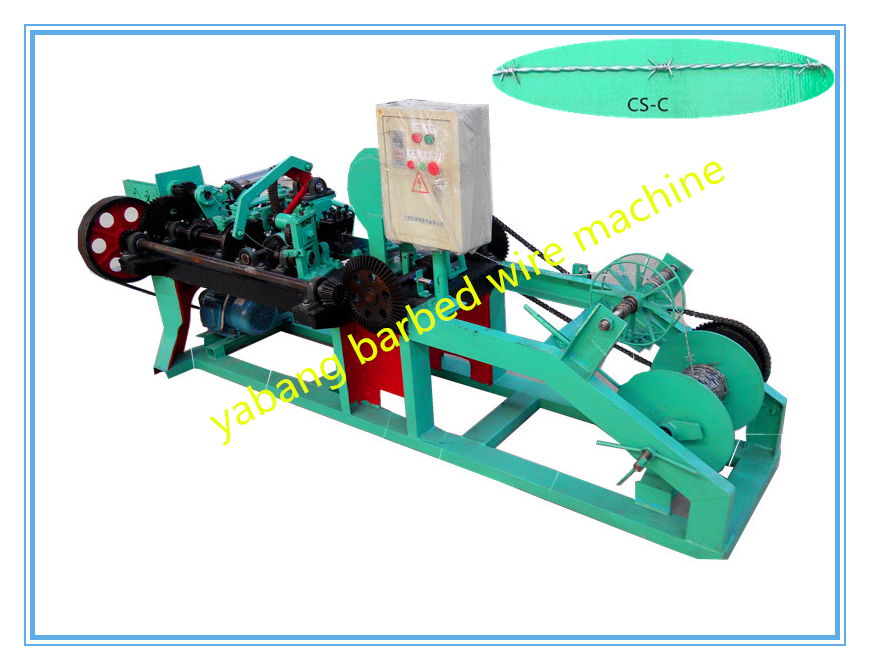

CA-C Normal and reverse barbed wire machine
It is suitable for low carbon wire,galvanized wire,pvc coated wire.
technique parameter:
| item | CS-C |
| motor | 2.2KW |
| rated output | 40kg/h |
| weight | 1100kg |
| overall dimension | 1900*1300*980mm |
| wire collection part size | 1300*800*700mm |
| barb pitch spacing | 4'' ,5'' |
| strand diameter | 1.5-2.8mm |
| wire diameter | 1.5-2.6mm |
| rotating speed of drive shaft | 432r/min |
