Function features:

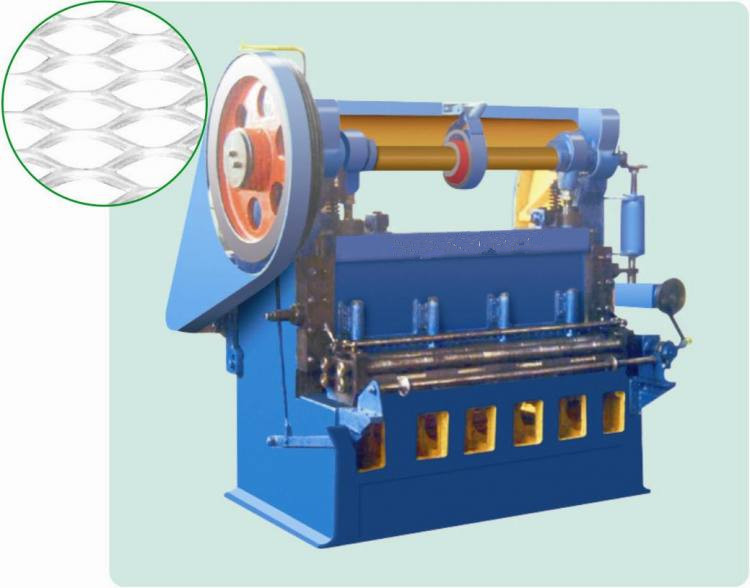

The advantages of expanded metal machine designed and produced by our factory includes:This machine adopts the mature technologies of the past as well as new technologies such as:full-automatic lubricating,NC stepping motor feeding,etc,;it has good effect;controllability,stability and safety has been greatly increased;it has reasonable structure,elegant appearance,it is environmental production and energy saving,it is suitable for the material as low carbon steel sheet,aluminium sheet,stainless steel sheet,aluminium magnesium alloy sheet,copper sheet,nickel sheet.
Finished product usage:Used with concrete in buildings and construction,maintenance of equipments,making of arts and crafts,covering screen for first class sound case.Also fencing for super highway,studio,highway,heavy expanded metal can be used as step mesh of oil tanks,working platform,corridor and walking road for heavy model equipment,boiler,petroleum and mine well,automobile vehicles,big ships.
Technique Parameter:
Type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-40 | JQ25-63 | JQ25-100 |
Material thickness(mm) | Max1.0 | Max1.0 | Max1.5 | Max2.5 | Max4.0 | Max6.0 |
Net width(mm) | Max600 | Max1000 | Max1250 | Max1500 | Max2000 | Max2500 |
Punching times/min | 180 | 160 | 160 | 80 | 67 | 55 |
Feeding distance(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
Length of mesh(mm) | Max20 | Max25 | Max30 | Max80 | Max200 | Max200 |
Motor power(kw) | 2.2 | 3.0 | 4.0 | 11.0 | 11.0 | 15.0 |
Weigth(T) | 0.95 | 2 | 3 | 6 | 10 | 12 |
Oeveral diamension(mm) | 950x570x1780 | 1800x1320x1550 | 1940x1600x2010 | 2870x990x2140 | 2400x3500x2300 | 3600x2500x3000 |
