Automatic reinforce mesh welding machine

Automatic reinforcement steel mesh welding machine

Quick Details

Type	Welding Wire Machine	Applicable Industry	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works
Condition	New	Place of Origin	HeBei,China
brand Name	ANPING YABANG	Usage	welding steel mesh
Voltage	380V 50HZ	Current	600-800A
Rated Capacity	125KVA*8	Dimensions	20000X5000X2300MM
Weight	6.5TONS	Certification	SGS ;CE
Warranty	1 Year	COLOR	White and blue
Wire diameter	5-12mm	Mesh width	2500-3300mm
Mesh size	100100-300300mm	Raw materials	Low Carbon Wires Wire Mesh Welding Machine
Control system	PLC+touch Screen	Welding speed	40-65times/min
Series	Construction Reinforcing wire mesh machine	Power	11KW

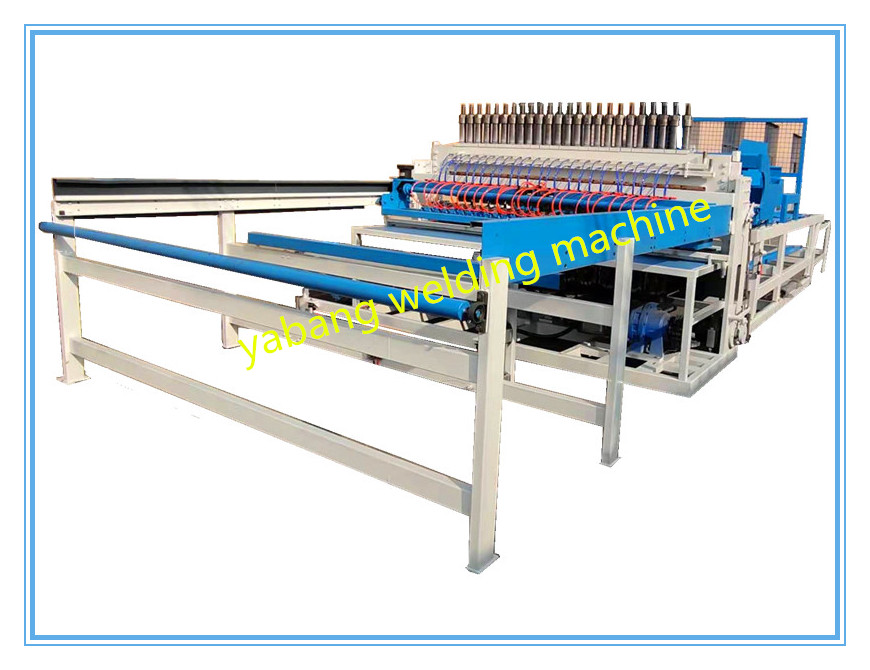

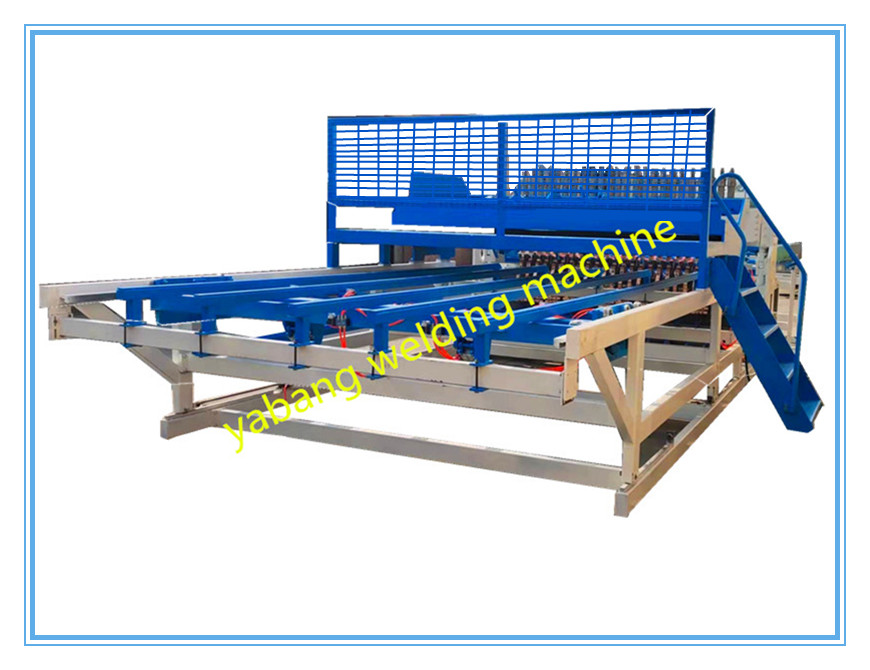

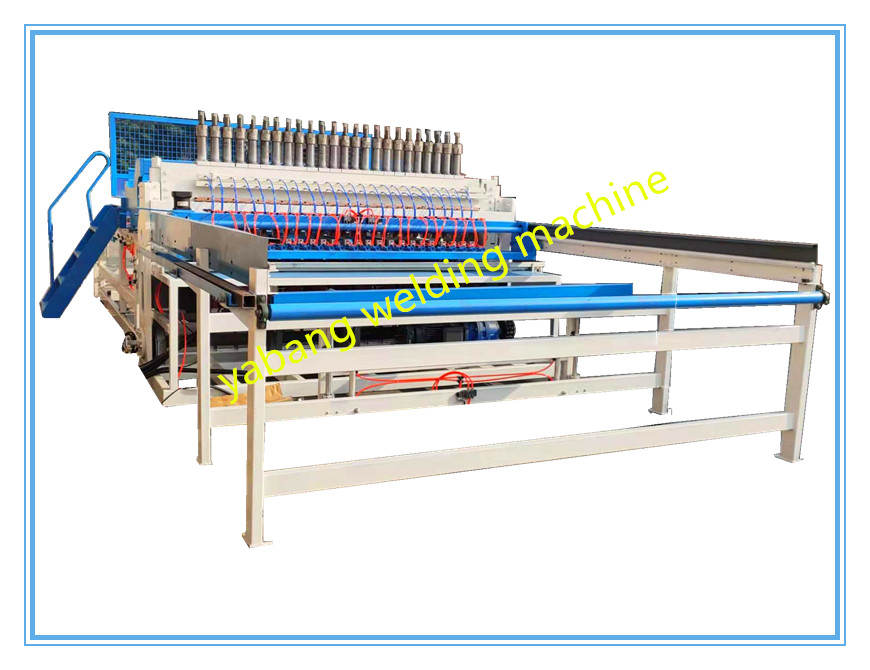

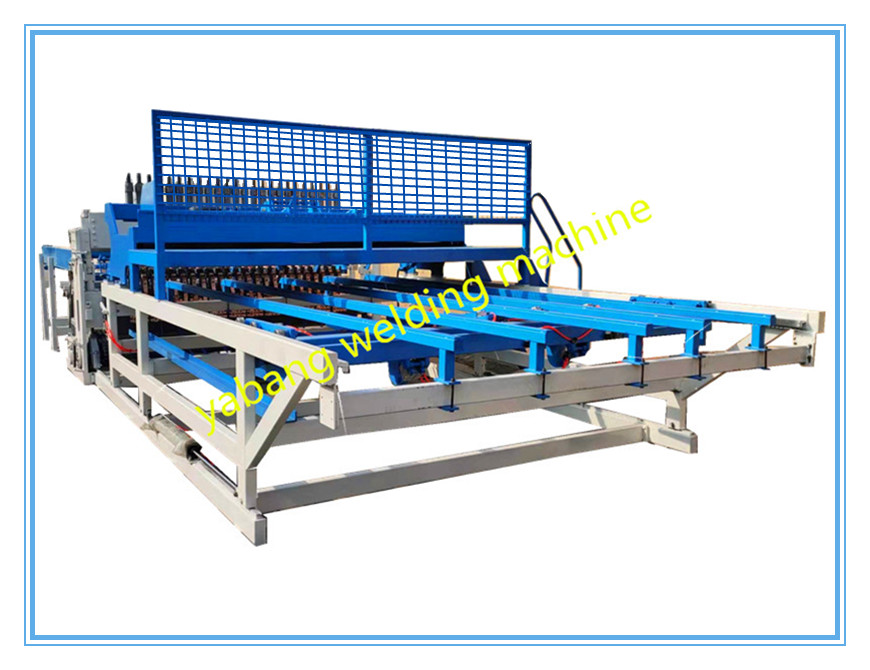

Product display ：

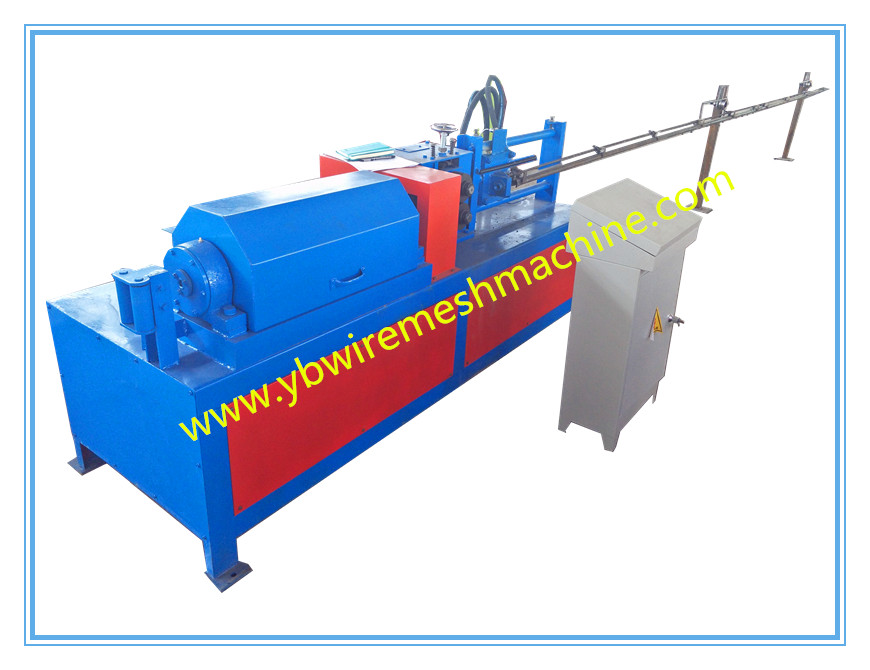

Auxiliary equipment:

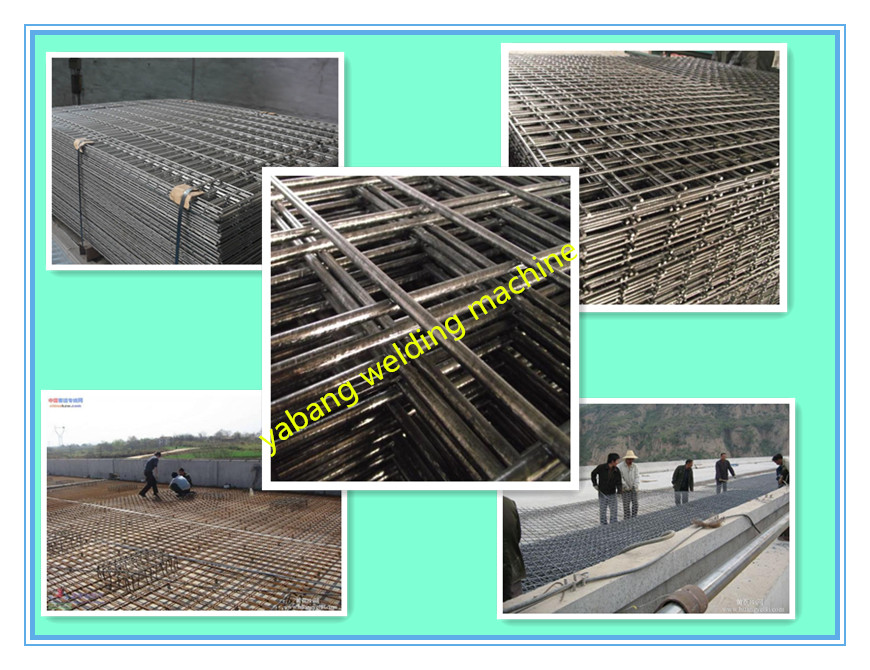

Finished Products and Usages:

Main parameters:

Type	YB-1500A	YB-2500A	YB-3000A
Numble of Eelectrodes	16	24	30
Max.Mesh Width	1500mm	3000mm	3300mm
Wire Diameter	5.0-12.0mm	5.0-12.0mm	5.0-12.0mm
Mesh Length	3-12m	3-12m	3-12m
Cross Wire Space	100-300mm	100-300mm	100-300mm
Line Wire Space	100-300mm	100-300mm	100-300mm
Electric Capacity	200KVA*8	200KVA*12	200KVA*15
Welding Speed	30-60t/min	30-60t/min	30-60t/min
Control System	PLC control	PLC control	PLC control

Function features and advantages:

1.This machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, separate welding. Surely,if the power supply is enough big,it can also adopt the welding at the same time.

2.Line wires adopt per-cut wires,line wires are put by hand based on the positioning device,then automatic tightening and send the down electrodes by sending line wires car installed with the step motor; When the mesh is being welded, line wires of the next mesh can be placed, which greatly shortens the working interval time of the machine.

3. Cross wires also adopt pre-cut wires,the cross wire hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of the device from the large storing hopper(storage up to 1000kg),it is installed in the removable pulling mesh rack,very convenient to adjust and maintain.

4.Our transformers adopts big power at 200KVA every one,which can ensure the welding quality in good condition and adopt water cooling system,so the machine can work for 24 hours continuously.

5.Pulling mesh way adapts servo motor back and forward according to the setting parameters into the touch screen.
