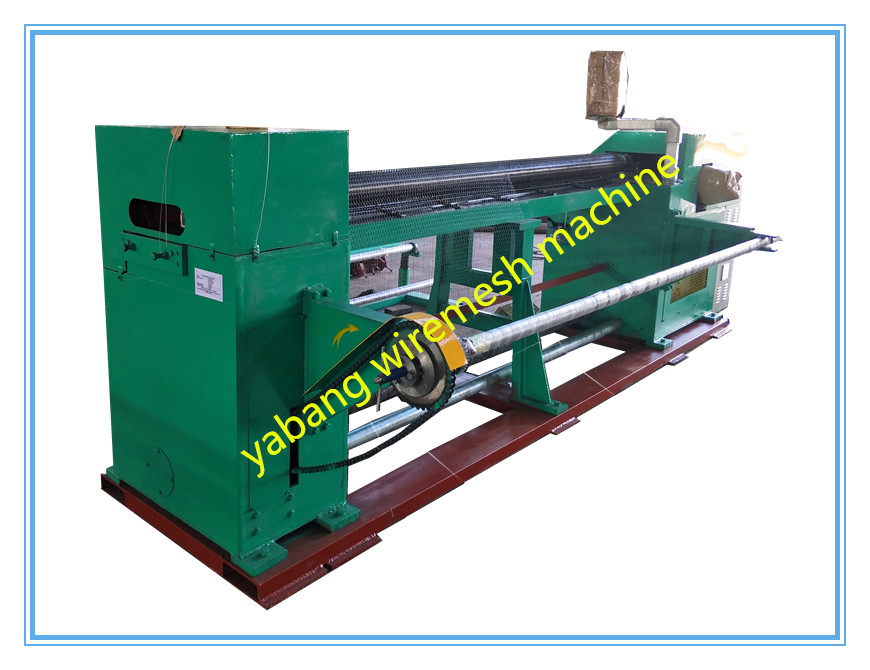

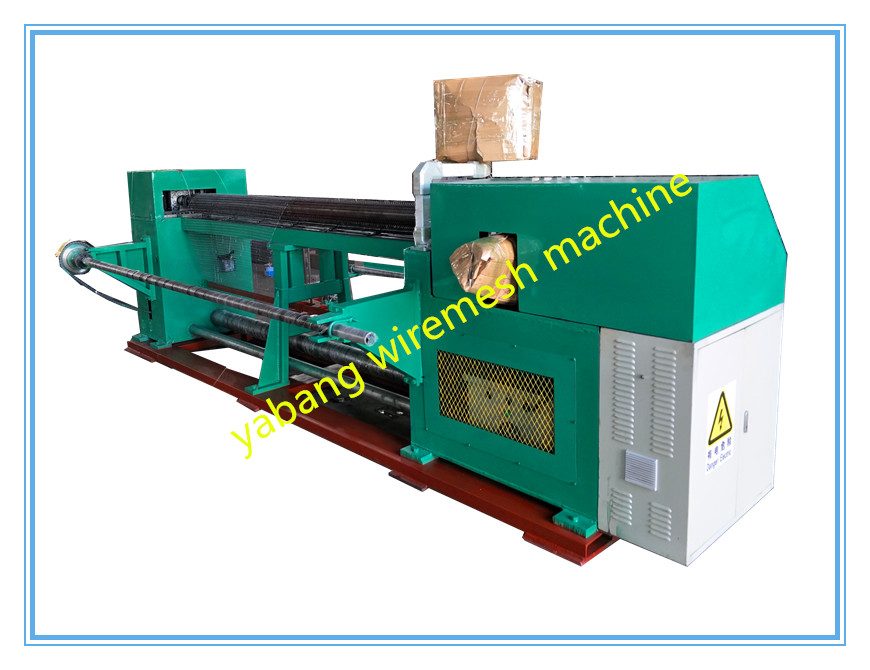

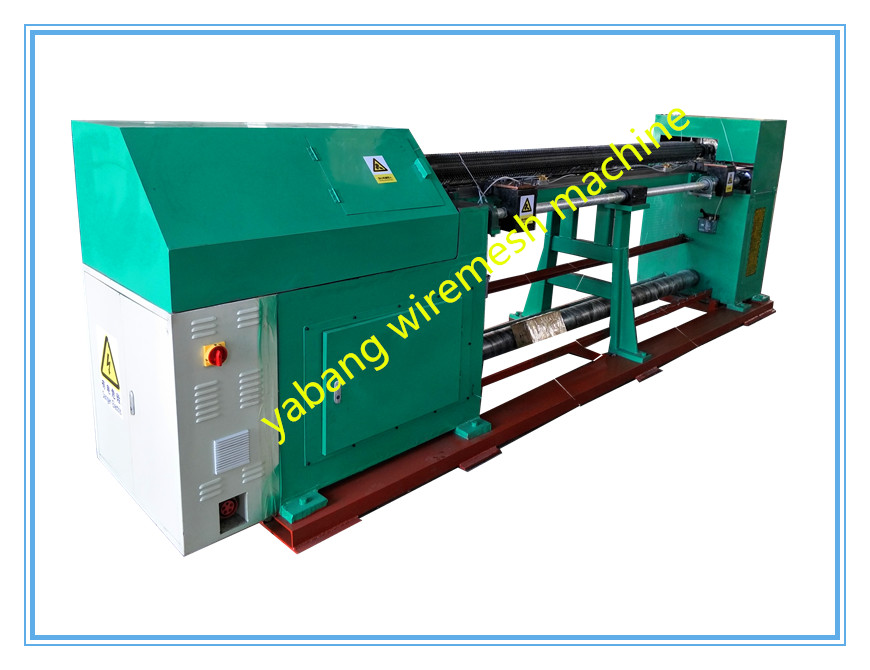

negative hexagonal net machine

1.The positive and negative hexagonal net machine is mainly used for farmland, pasture fences, animal cages and building wall reinforcement and other isolation nets. The equipment runs smoothly, has low noise, has broken wire, broken net, automatic stop device in place, and alarm; the mesh is neat and uniform, and can be reinforced in any position; centralized lubrication, reliable lubrication, easy to use; , maintenance and adjustment is convenient.

2. Adapt to the material: galvanized wire, stainless steel wire, coated wire, copper wire and so on.3. Product use:(1) Building wall fixing, heat preservation and heat insulation;

3.The power plant is tied with pipes and boilers to keep warm;

4.Antifreeze, residential protection, landscaping protection;

5. raising chickens and raising ducks, isolating chickens and duck houses, and protecting poultry;(5) Protection and support of seawalls,hillsides, roads and bridges and other water and wood projects

Major Technical Parameter:

Model	Rated Sisze of Cell(mm)L	Max Net Breadthï¼ˆmmï¼‰		Max Thread Diameter(mm)	Theoretical productivity		Dimensions(LXWXH)mm	Weightï¼ˆTï¼‰
Model	Rated Sisze of Cell(mm)L	Single	Double	Max Thread Diameter(mm)	Mesh/min	M2/h
ZJ1/2	16	2490	1200	0.75	38	50	4500x2200x1450	4.6
ZJ3/4	22.85	2490	1200	1.0	38	62	4500x2200x1450	4.6
ZJ1	28.667	2490	1200	1.2	38	66	4500x2200x1450	4.6
ZJ1.2	34.7	2490	1200	1.2	38	99	4500x2200x1450	4.6
ZJ1.5	43	2490	1200	1.4	38	131	4500x2200x1450	4.6
ZJ2	57.334	2490	1200	1.6	38	169	4500x2200x1450	4.6
ZJ3	86	2490	1200	1.8	38	169	4500x2200x1450	4.6

Machine Series

negative hexagonal net machine

2. Adapt to the material: galvanized wire, stainless steel wire, coated wire, copper wire and so on.3. Product use:(1) Building wall fixing, heat preservation and heat insulation;
